Landis Gas Meter Pulse Reader
The gas meter reader sensor is specifically designed to measure usage from Landis, Elster, or similar gas meters. As the rotating part of the gas meter passes through these sensors, it initiates a reading, enabling remote meter reading. This gas meter reader integrates with LoRaWAN technology to support wireless communication, leveraging STMicroelectronics' advanced LoRa technology.
Benefits
Using LoRaWAN technology for wireless monitoring
Easy to configure, low deployment cost
LONG RANGE - 800 - 1 km for urban area - up to 10+ km for open space area
LoRa Parameters
MCU
Arm® 32-bit Cortex®-M4
Memory
256KB Flash; 64KB RAM
TX Power
Up to 22dBm
ISM Bands
AS923, AU915, EU868
RX sensitivity
Down to -125dBm@BW = 125 kHz, SF = 7
Report interval
Configurable via Downlink Commands
Spreading factor
SF7 ~ SF10(Adaptive)
Communication protocol
LoRaWAN Class A
Near field communication way
Infrared Tools
Anti-dismantling alarm function
Yes
Electrical Parameters
TX current
≤127mA @ 22dBm
Power supply
Built-in battery 3.6V (ER18505 4000mAh) (Ultra-low power consumption)
Active current
≤4mA
Standby current
≤40uA
Storage temperature
-10°C ~ +60°C
Data reading support
Infrared data reading support
CPU working temperature
-20°C ~ +85°C
Battery undervoltage warning
Yes

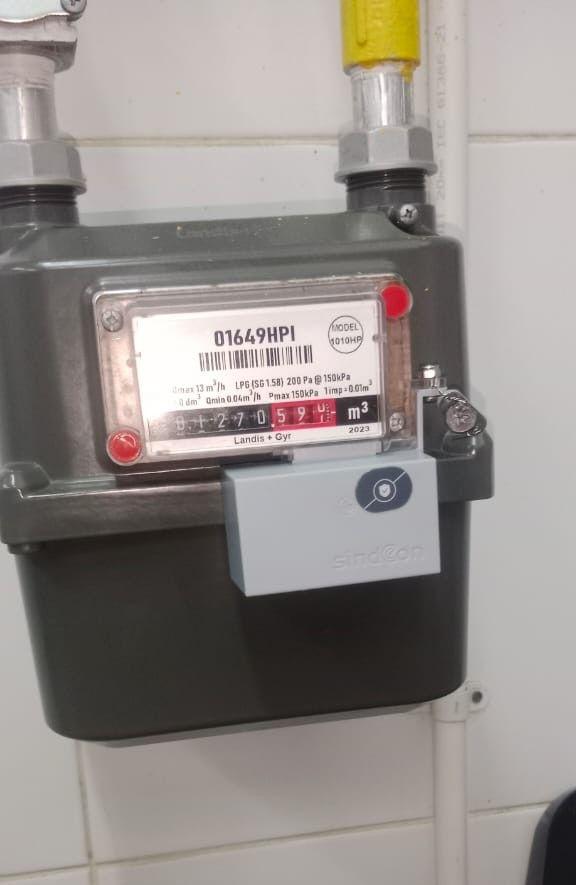

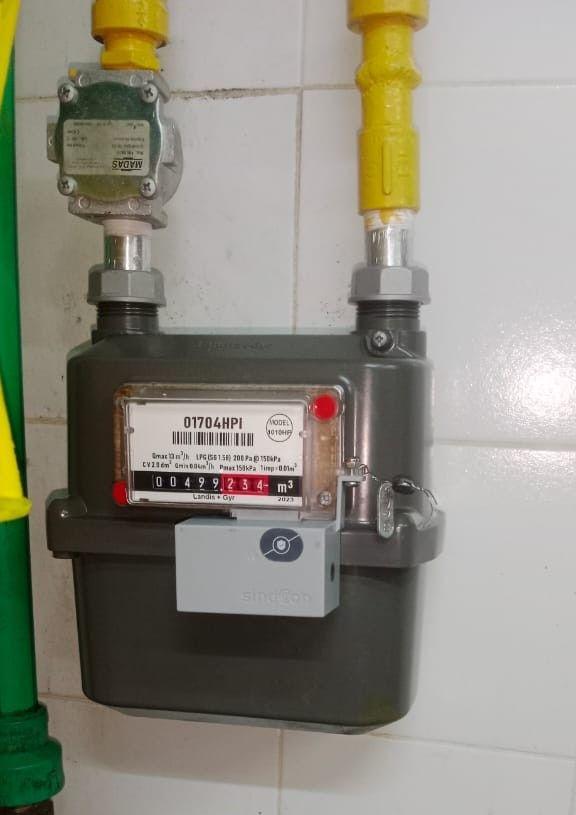

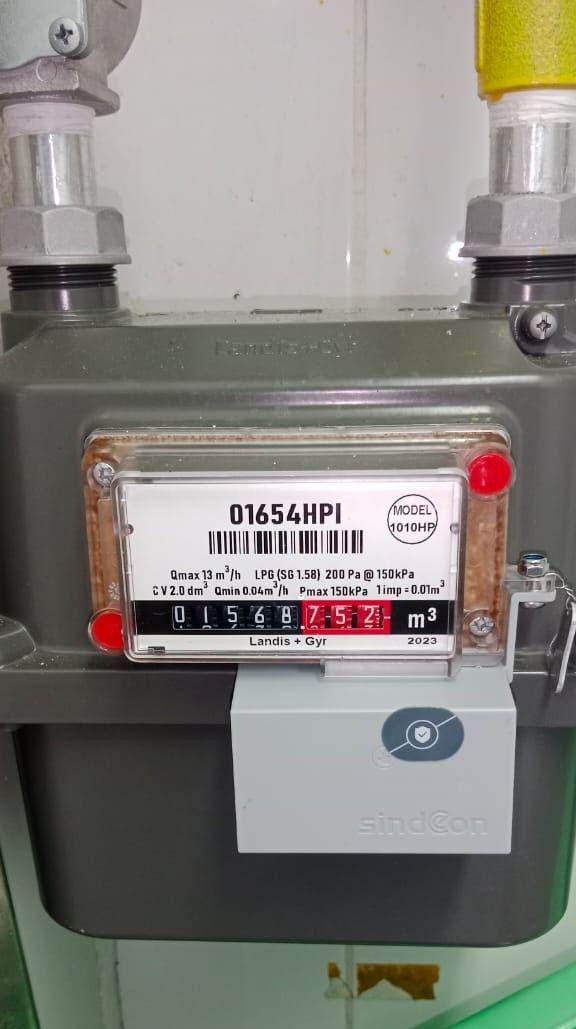

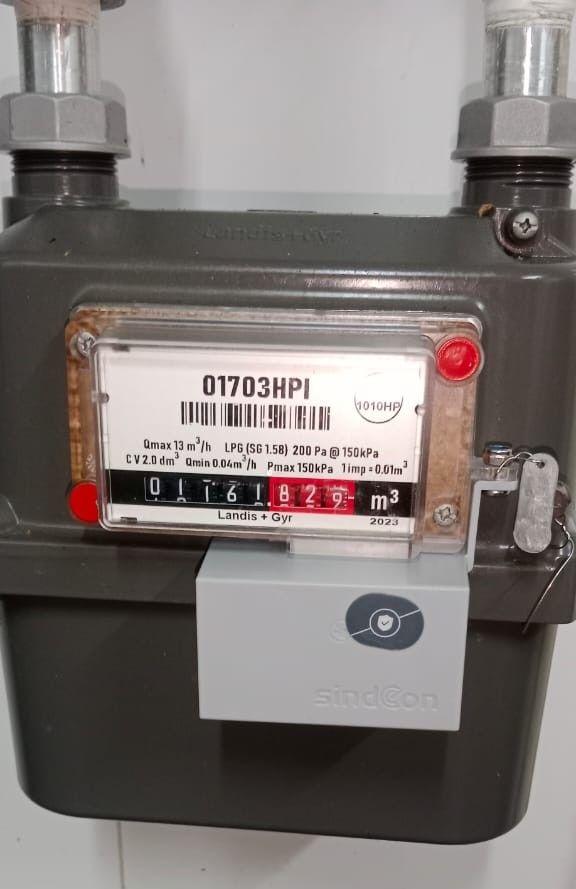

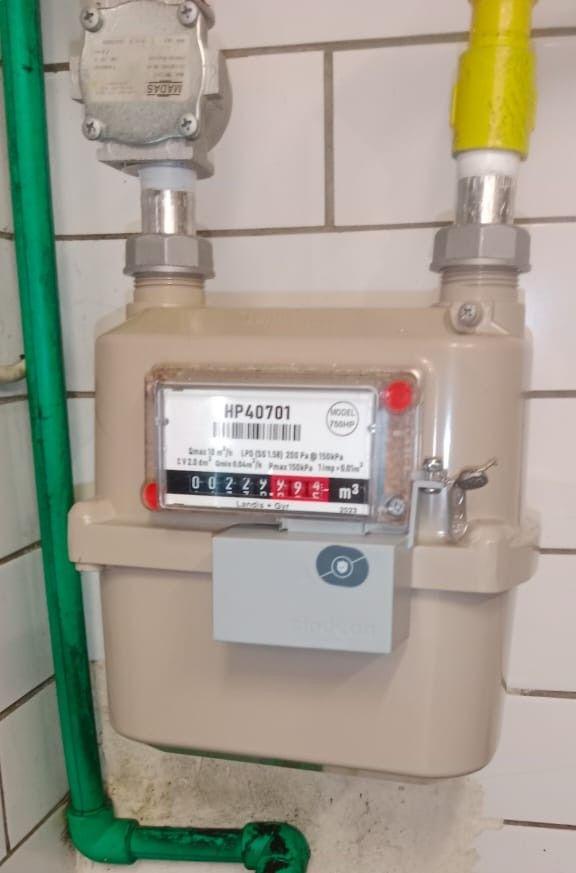

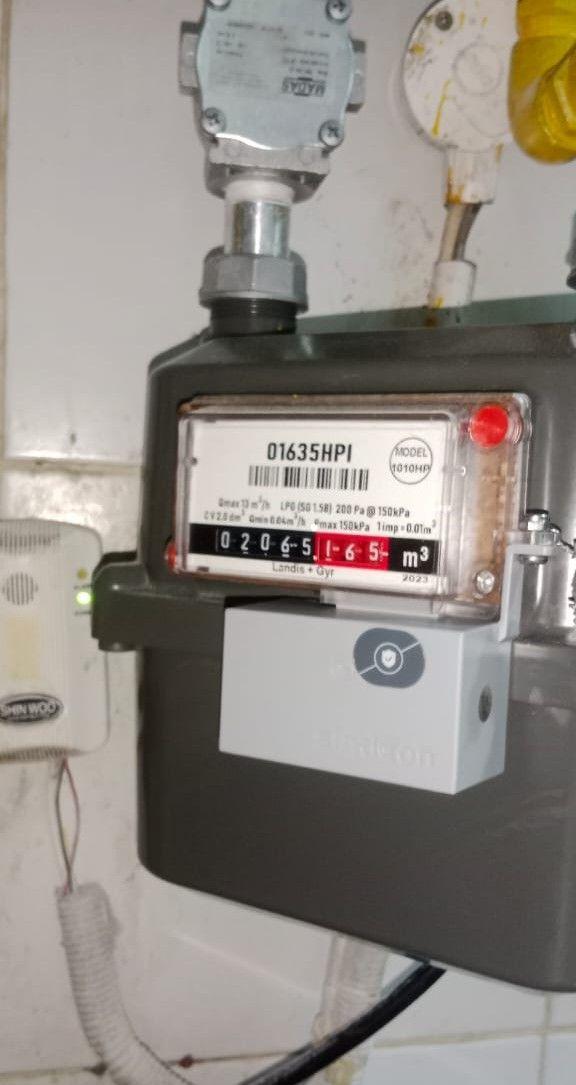

Implementations
